WORKING PRINCIPLE
The passive nuclear level meter can obtain the level information of container intermediates by detecting the intensity of gamma rays emitted by container intermediates, so as to provide guidance for the production process. Due to the strong penetration ability of gamma rays, it is not affected by the environment, so it can realize non-contact measurement, and it is installed outside the container without opening holes, which has the advantages of easy installation and does not affect the continuity of production. In order to cope with the bad and harsh field environment, the remote debugging manual is configured. The passive nuclear level meter transmits the detected gamma-ray information, calculation results and operation parameters to the remote debugging manual through LORA wireless communication technology, and displays them through the LCD screen. At the same time, the operating parameters can also be adjusted by the remote debugging manual operator to be transmitted to the passive nuclear level meter through LORA wireless communication technology. In addition, the cloud platform transceiver can also be selected. The passive nuclear level meter transmits the detected gamma-ray information, calculation results and operating parameters to the cloud platform transceiver through LORA wireless communication technology, and the cloud platform transceiver converts the received LORA data into 4G/5G signals and transmits them to the cloud service for viewing and presenting.
TECHINIAL DATA

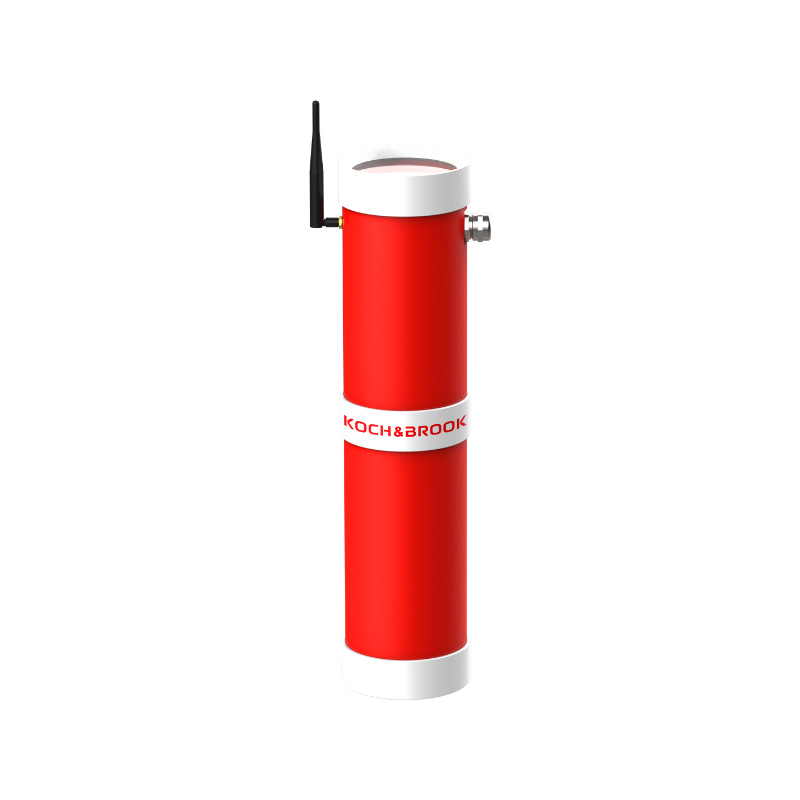

Size: Φ95×392 (mm)
Net weight: 5.5kg
Power supply: AC AC220V (185V-265V), DC DC24V (16V-36V)
Output: "Analog enhanced with 1 set of 4-20mA analog signal and 2 sets of passive normally open contact switch signals, contact capacity is AC250V, 5A;
The basic model has 2 sets of passive normally open contact switching signals with contact capacity of AC250V, 5A.
Status display: HD OLED LCD screen, LED fault and signal indicator
Parameter modification: level meter button, handheld debugger, upper computer
Ambient temperature: -40℃-80℃
Communication distance: ≥200m (on-site), ≥800m (open)
Protection level: IP65
