Koch&Brook's 3D radar provides radar coverage in three dimensions, unlike the more common 2D radar. 2D radar provides range and azimuth values while 3D radar provides elevation information in addition to range and azimuth. Use applications include drone detection, bird monitoring, defense and surveillance. The latest in the line of 3D radars (counter-drone radars) from Koch&Brook is the revolutionary product Model XX.

It creates a full-dome drone detection area from 0 to 90 degrees vertically and 360 degrees horizontal with a single radar that weighs 5.4Kg. The Model XX radar measures latitude, longitude and altitude of all aerial targets in a 400 meter wide hemispherical dome with the ability to detect and track flying objects from any direction, even directly above the radar.

Rapid threat assessment is simple with the automatic detection and 3D tracking of sUAS (small unmanned aircraft system) combined with fully automated camera cueing on the target. Manpower and cost are both reduced with this system while mitigating the threat of undesired aerial presence. Unaffected by lighting or noise pollution, the Model XX

TECHINIAL DATA

Frequency: 70MHz in the 10.0 to 10.5 GHz

Measuring range: 400 m

Effective field of view: Full Dome Coverage/ Horizontal: 360° Vertical: 90 º

Vertical angular accuracy: ±3º

Horizontal angular accuracy: ±3 º

Range resolution: 2.17 m

Rotation rate: 220 º per second

Power supply: 48VDC

Consumption: 27~50W

Working temperature: -20 º C~55 º C

Communication: Ethernet TCP/IP

Protection: IP65

Size: 68” x 30” x 30"

Weight: 5.4Kg

WORKING PRINCIPLE

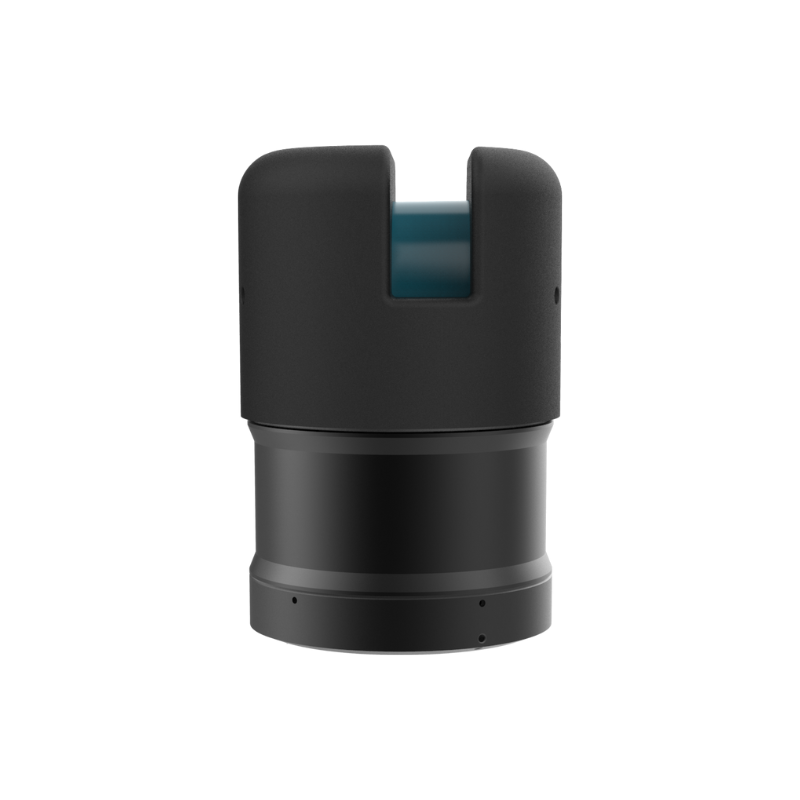

The high performance TDLS1300  Laser Scanner is based on the components of a 2D laser scanner and a swiveling platform which is powered by a servo-drive. A high resolution encoder on the servo-drive measures the angle of rotation of the platform and by connection of the 2D laser data with the encoder data, high precision 3D profile measurements are produced. Koch & Brook provides sophisticated software to control and collect data from the laser scanner or for complete measurement solutions.

INDIVIDUAL AND FLEXIBLE PLESOFTWARE SYSTEM

The software system has a complete structure, good compatibility and strong scalability. KOCH & BROOK provides customized the human-computer interface and management modules according to users’ needs. Through automated scripts it can realize information collection, cutting and segmentation, transformation processing, measurement from 3D point cloud calculation and a series of functions such as database, report and web page display.  It’s also possible to monitor multiple radars in different silos.

TECHINIAL DATA

Laser wavelength: Infrared 905nm

Laser safety class: 1(IEC 60825-1:2014, EN60825-1:2014)

Application: bulk solid, grains, powders

Measuring range: 50m

Measurement accuracy: ±1mm

Volume and Mass accuracy:±5%

Smoke adjustment: With

Filter: Smoke filter, particle filter, mean value filter

Laser scan frequency: 25Hz,35Hz,50Hz,75Hz,100Hz (Optional)

Laser angle resolution: 0.1667º, 0.25 º, 0.333 º, 0.5 º, 0.667 º, 1 º (Optional)

Platform rotation angle: -90 º…90 º (settable)

Laser measurement angle: 190 º

Ambient light resistance: 70000lx

Power supply: 220VAC

Process temperature: -30 º C~60 º C

Ambient temperature: -40 º C~75 º C

Process pressure:0…2bar

Communication: Ethernet/ Ethernet to fiber

Housing material: Plastic coated carbon steel

Protection: IP67

Weight: 21Kg
