140GHz FMCW Radar Level Meters
The 140GHz LLMW1111 radar level meter (terahertz/FMCW tech) has a 0.7° narrow beam to bypass obstacles. Suitable for reaction vessels, it offers precise liquid level measurement and multiple options for diverse on-site needs.
- Extremely narrow beam angle for high measurement precision.
- Highly focused signal that effectively avoids internal obstructions.
- Ideal for accurate liquid level measurement in vessels such as reactors.
Product Detail

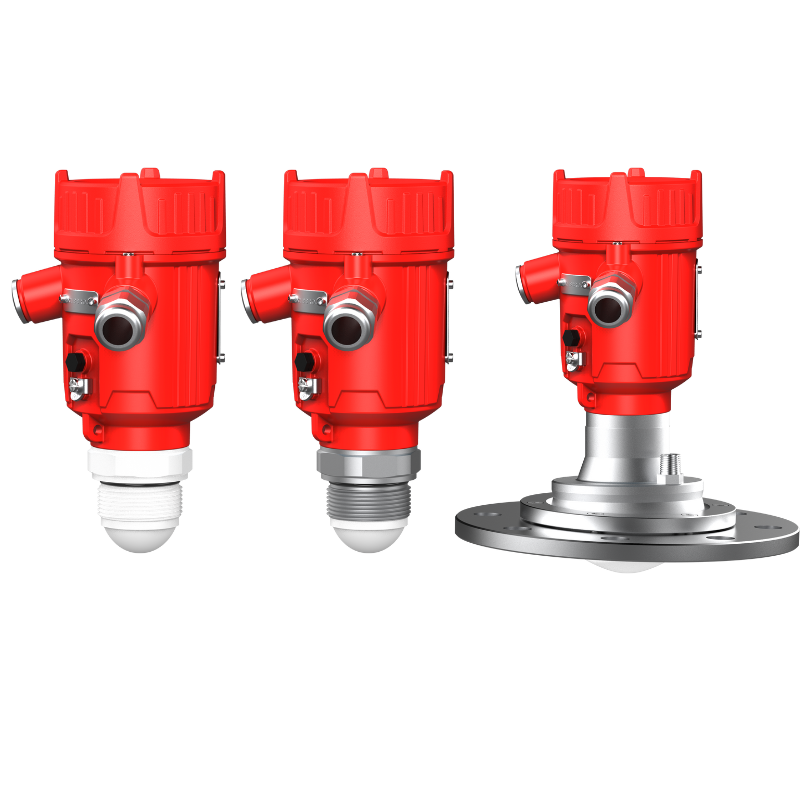

The LLMW1111 Series Radar Level Meter is a radar level meter that operates at a frequency of 140GHz. It utilizes terahertz electromagnetic waves and FMCW (Frequency Modulated Continuous Wave) modulation technology. With a minimum beam angle of 0.7°, it provides high focus and is suitable for installation in containers with obstacles such as stirrers, heating pipes, and ladders. This makes it ideal for accurately measuring liquid levels in reaction vessels, as the narrow beam angle helps bypass internal obstacles, eliminate interference echoes, and ensure precise measurements.
For various on-site conditions, there are several options available for the 140GHz products: Rod, Horn, Integrated, Hygienic, Process Sealed, and Swiveling Holder.
